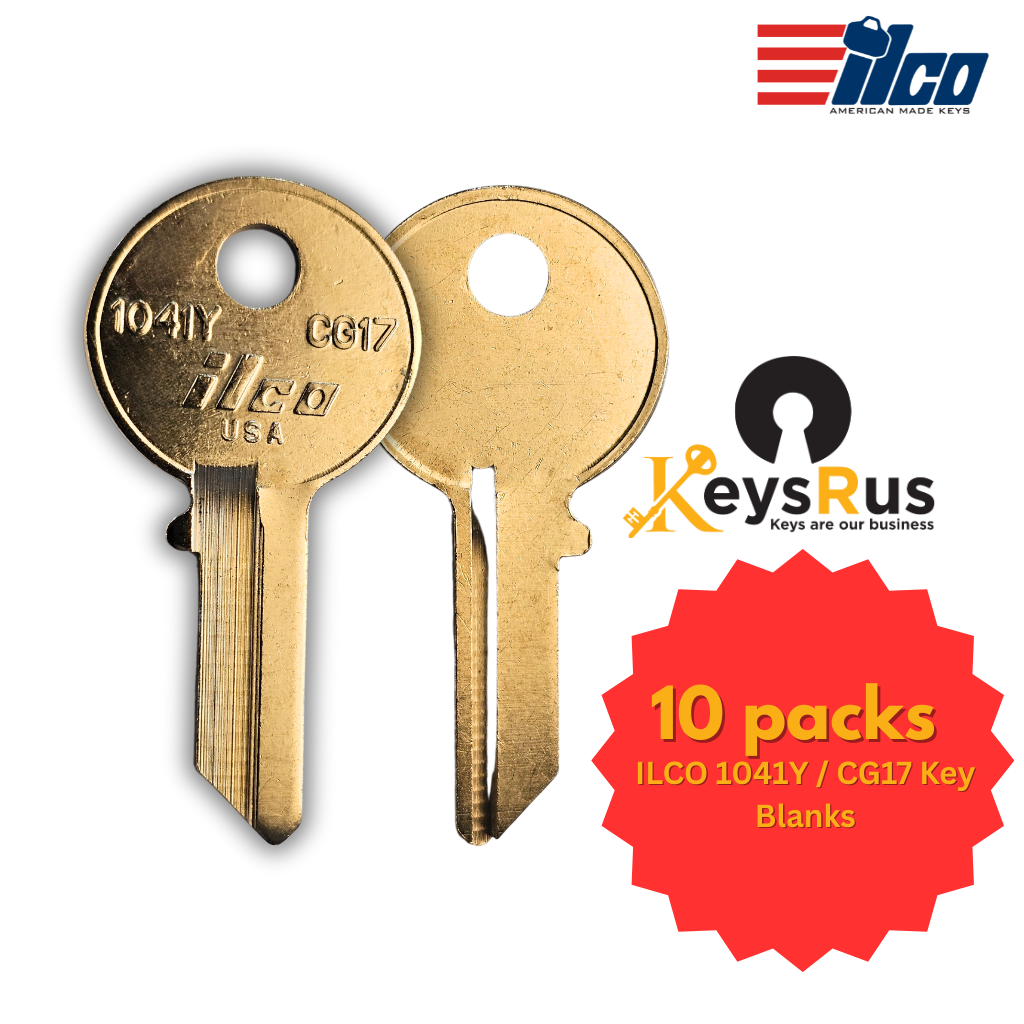

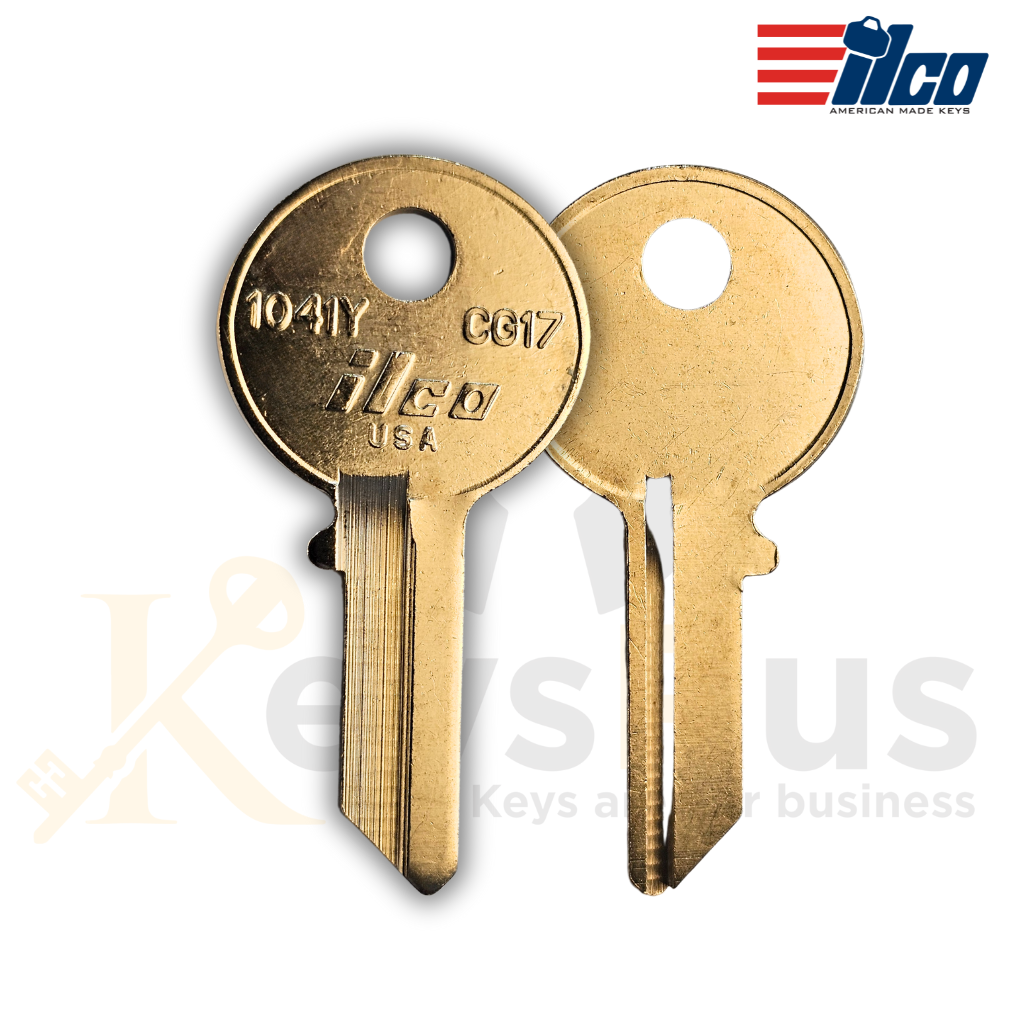

The ILCO 1041Y (CG17) key blank, made in the USA under the Taylor brand, is a solid brass key blank used across thousands of secure locking applications — including padlocks, jukeboxes, furniture locks, and specialized security equipment. This 10-pack is ideal for locksmiths servicing vintage systems and large-scale key code environments.
🔑 Key Features:
-
Brand: Taylor by ILCO
-
Part Number: 1041Y / CG17
-
Material: Solid Brass
-
Finish: Polished Brass
-
Country of Origin: USA
-
Quantity: 10 Uncut Key Blanks per Pack
-
Use Case: Furniture, jukeboxes, padlocks, vintage equipment, tire and safe locks
🔁 Manufacturer Equivalents:
-
Cole CG14
-
Curtis CG-17
-
Dominion 41Y
-
Ilco EZ CG17, CG17-BR
-
Jet KP1
-
JMA CHI-13D, CHI13D
-
Original KP1
-
Orion 1041Y
-
Star 5CG4
-
Silca CH10
-
Taylor 41Y
🧰 Compatible Manufacturers & Applications:
🔹 Chicago Lock Co.
Extensive compatibility for furniture locks, padlocks, and vending devices with key codes such as:
-
Product Details:
-
Genuine Taylor brand key blanks. Made by ILCO
-
Made in USA
-
Solid Brass construction
-
Sold in packs of 10 uncut blanks
Manufacturer Equivalents:
-
Cole CG14
-
Curtis CG-17
-
Dominion 41Y
-
Ilco 1041Y
-
Ilco EZ CG17, CG17-BR
-
Jet KP1
-
JMA CHI-13D, CHI13D
-
Original KP1
-
Orion 1041Y
-
Star 5CG4
-
Silca CH10
-
Taylor 41Y
Key Cutting:
-
This key must be cut before use.
-
Can be duplicated using any standard key cutting machine.
Compatible With the Following Manufacturers and Key Code Ranges:
Arctic Cat
-
Various models.
Benston
-
1B01–2B99
-
3B00–3B50
Chicago
-
Key codes: 1A1–1A24, 1B01–2B99, 1BM01–1BM99, 1E01–1E99, 1EY01–1EY99, 1GP1–1GP9, 1GW1–1GW9, 1J01–1J99, 1J000–1J100, 1L01–1L99, 1MC1–5MC9, 1MD1–1MD9, 1MM01–1MM12, 1N01–1N99, 1N000–1N450, 1P01–1P99, 1RB1–1RB9, 1RC1–1RC9, 1S1–1S9, 1S11–1S99, 1SC1, 1SS1, 1TS1–1TS4, 1X1–6X9, 1X01–1X99, 2A1–2A13, 2BM00, 2E00–2E99, 2EY00, 2GP0, 2GW1–2GW9, 2J00–2J99, 2K00–2K99, 2L00–2L99, 2MD0–2MD1, 2HM01–2HM99, 2N00–2N99, 2P00–2P99, 2RB1–2RB9, 2S1–2S9, 2S11–2S52, 2X00–2X99, 3A1–3A9, 3B00–3B50, 3E00, 3EY01–3EY99, 3GW1–3GW9, 3HM00–3HM99, 3J00–3J99, 3K00–3K99, 3L00–3L25, 3N00–3N99, 3P00–3P99, 3RB1–3RB9, 3S1–9S9, 3X00, 4A1–4A9, 4EY00, 4HM00–4HM99, 4J00–4J99, 4K00–4K99, 4N00–4N99, 4P00–4P99, 4RB1–4RB9, 5A1–5A9, 5AH01–5AH10, 5C1–9C9, 5GB0–5GB1, 5HM00–5HM99, 5J00–5J99, 5K00–5K99, 5N00–5N99, 5P00–5P40, 5P51–5P99, 5RB1–5RB9, 5S01–5S99, 5V10, 5V20, 5V30, 5V40, 5V50, 5V60, 5V70, 5V80, 5V90, 6A1–6A6, 6AH01–6AH10, 6J00–6J99, 6K00–6K99, 6MC1–6MC5, 6N00–6N99, 6P00–6P99, 6R01–6R24, 6RB1–6RB4, 6S01–6S50, 6V00, 7A1–7A9, 7AH1–7AH5, 7J00–7J99, 7K00–7K99, 7N00–7N99, 7P00–7P90, 7R56–7R79, 7X1–7X6, 8A1–8A9, 8J00–8J99, 8N00–8N99, 9A1, 9J00–9J99, 9N00–9N99, 9S01–9S50
Diebold
-
1L01C–1L99C, 2L01C–2L99C, 3L01C–3L99C
Globe Wernicke
-
1GW1–1GW9, 2GW0–2GW9, 3GW0
Hillside
-
2HM01‒5HM99
Hon
-
2X00–2X99
Invincible
-
1MC1–5MC9, 6MC1–6MC5
Juke Box
-
See full Chicago listing above; includes duplicate codes used across jukebox systems
Masell
-
1MM01–1MM12
Security
-
5S01–5S99, 6S01–6S50, 9S01–9S50
Tire Locks
-
Various models
-
-
