Description

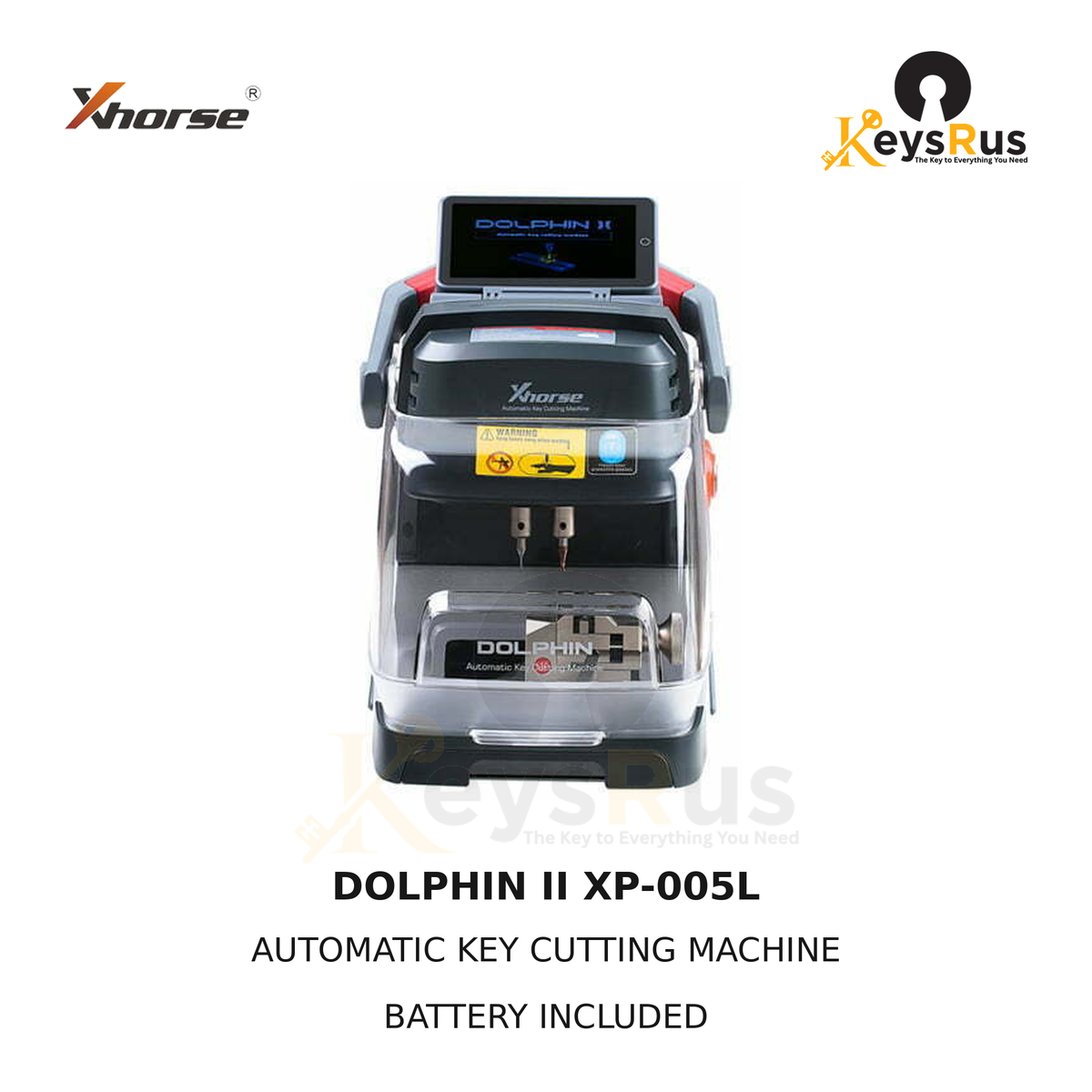

The Xhorse Dolphin II XP-005L brings automatic automotive key cutting to the workshop or mobile locksmith van. This battery-equipped model combines an adjustable 5-inch touchscreen, an onboard key database and the versatile M5 clamp in a compact machine that can be operated directly from its screen.
Duplicate supported keys, cut from bitting data and use guided vehicle-database functions through the built-in interface. Wi-Fi provides access to online services and updates, while Bluetooth connects the machine to the Xhorse app for phone-based control.
Features That Help You Work

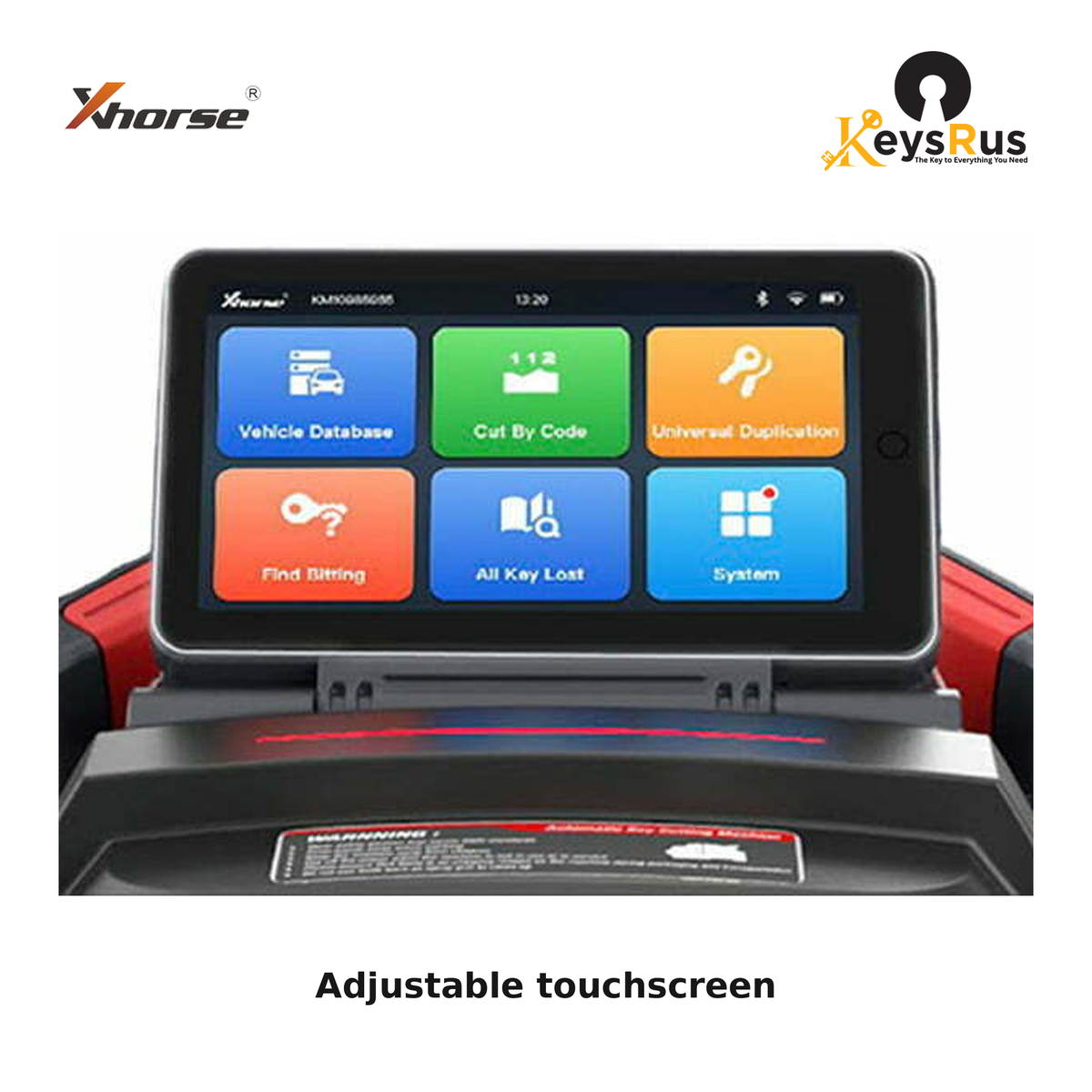

- Adjustable touchscreen: Tilt the 5-inch capacitive display for a comfortable viewing angle. The 1280 × 720 screen presents key profiles, cutting options and machine settings at the bench.

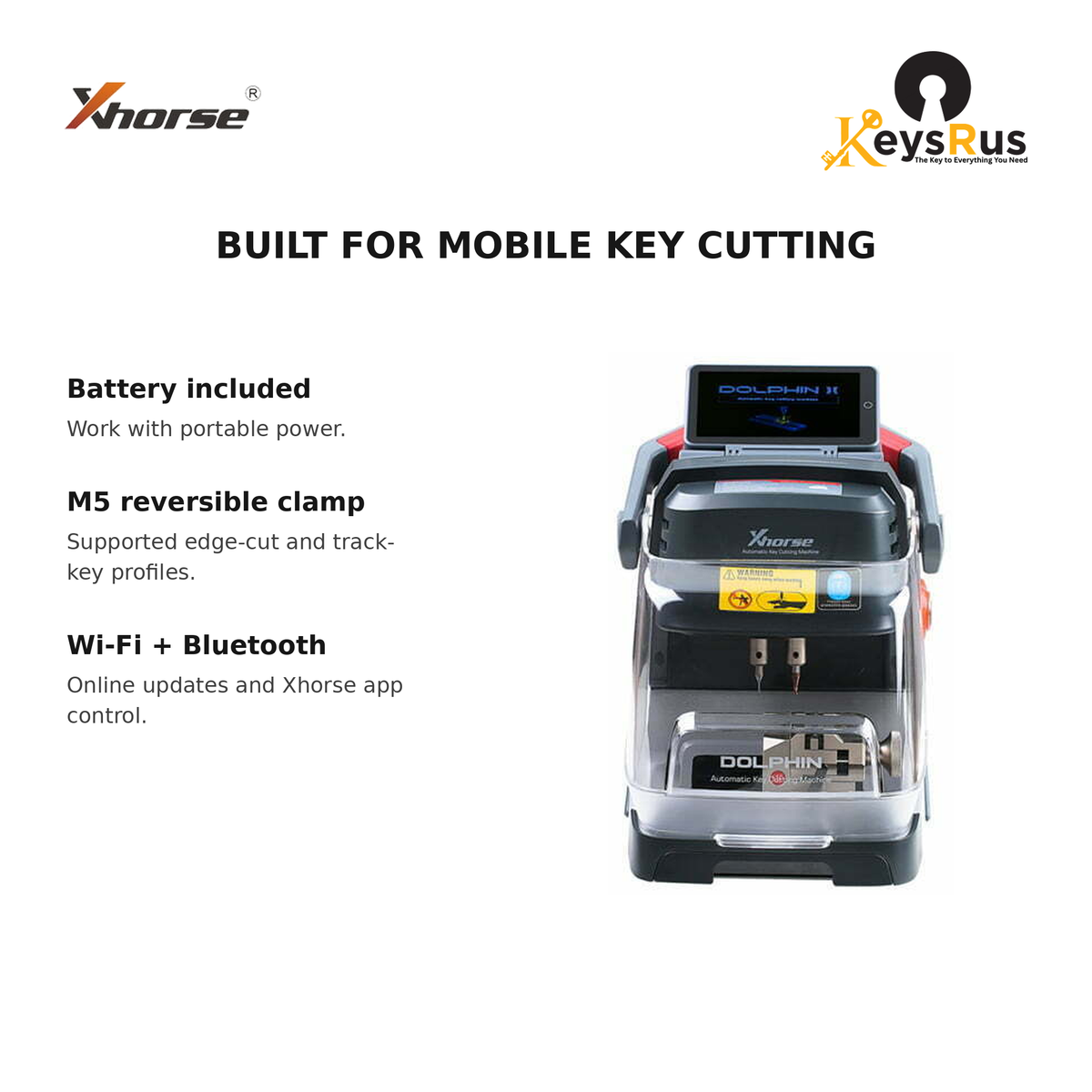

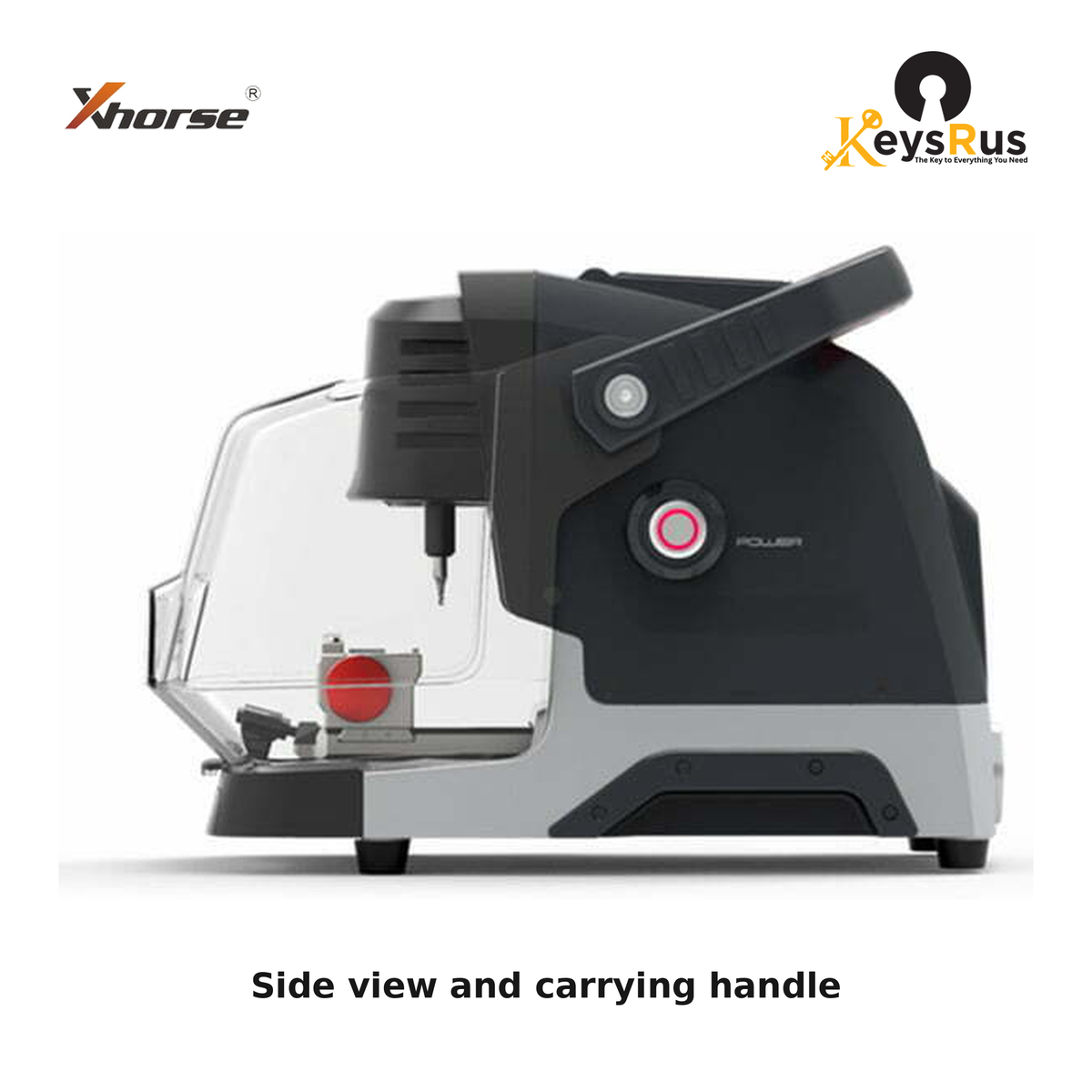

- Battery-powered portability: The integrated battery and carrying handle suit mobile jobs where convenient mains access is limited. The supplied adapter powers the machine and charges its battery.
- M5 clamp: Reversible A and B clamping surfaces accommodate supported edge-cut and track-key profiles without repeatedly exchanging separate clamps. Follow the profile’s on-screen clamp and alignment instructions.
- Controlled cutting motion: An aluminum structure, precision ball screw and cross-rail arrangement support stable movement of the cutter and probe.

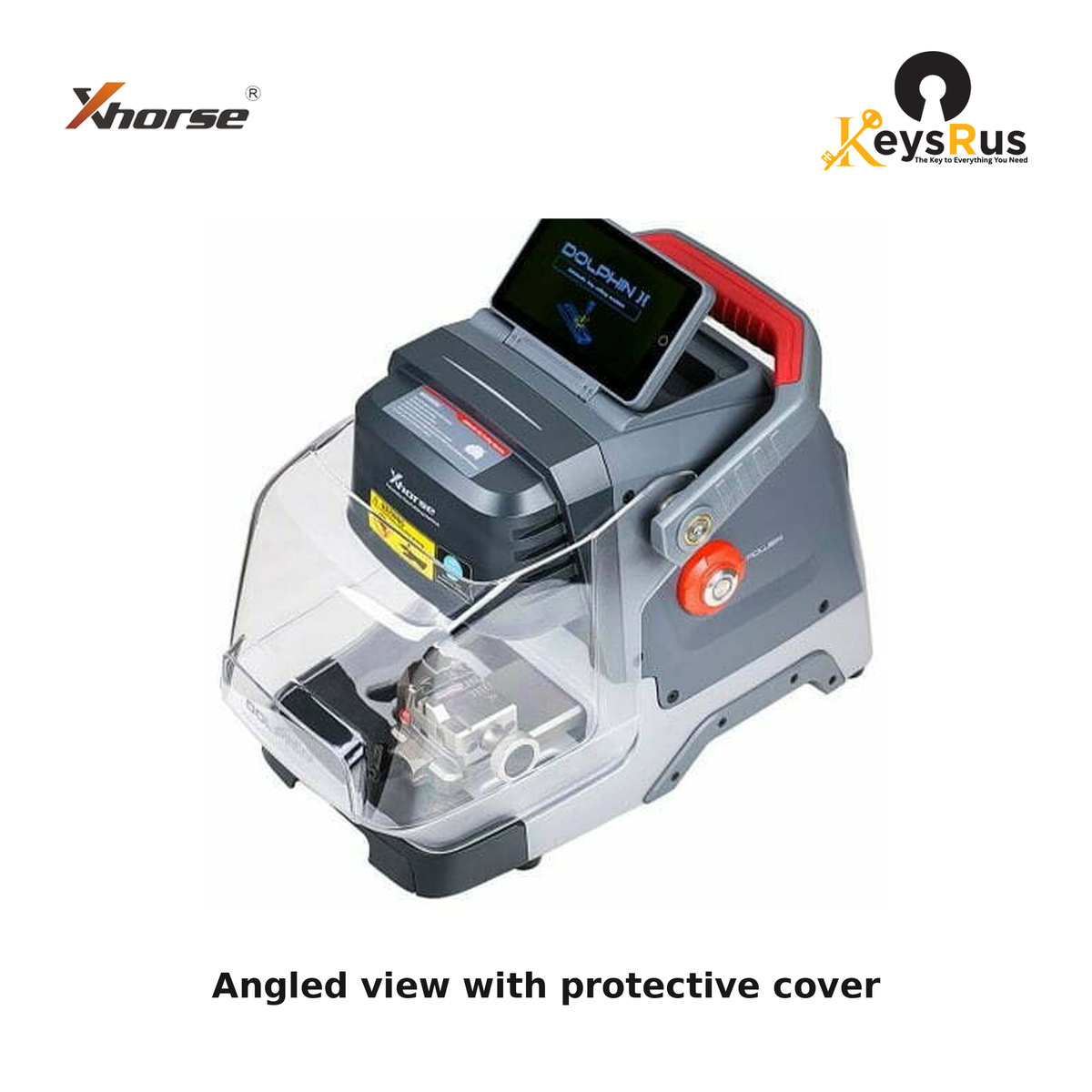

- Visible working area: A clear protective cover contains cutting debris while keeping the clamp and key visible.

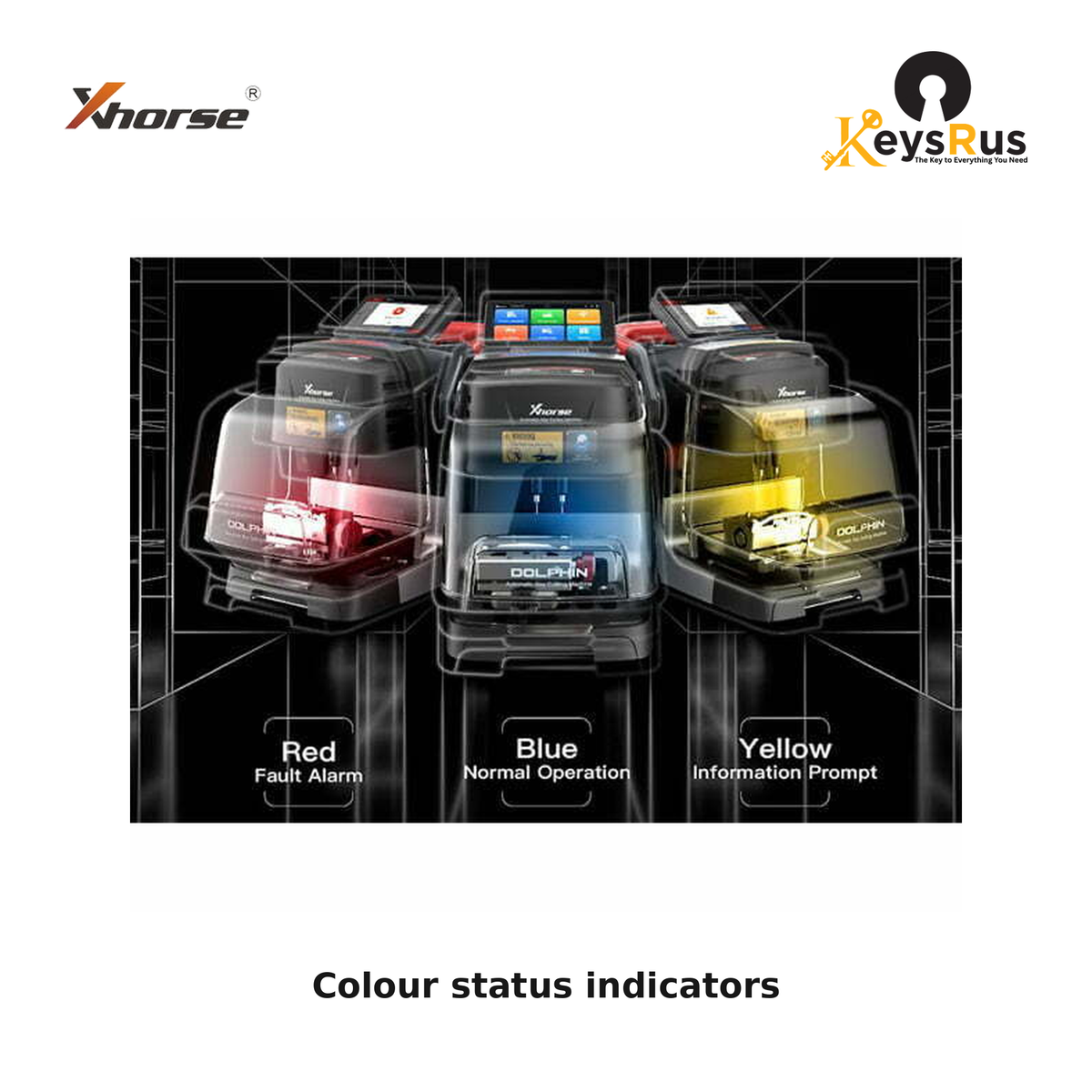

- Status lighting: Colour-changing indicators provide a quick visual reference for operation, prompts and machine faults.
- Connected updates: Update supported firmware and database content over Wi-Fi and access Xhorse app functions through Bluetooth.
Cutting and Key Preparation
Use the machine’s decoding and duplication functions to copy a supported existing key. For code-cutting work, enter the available bitting or use the supported database procedure to prepare the replacement blade. Online key-code services require an internet connection.
The supplied M5 clamp covers supported standard and track-key applications. Some specialist profiles require optional clamps or adapters, selected according to the machine’s key database. Use the specified cutter, probe, clamp face and alignment position for each key.
Specifications
| Model | Dolphin II XP-005L |
|---|---|
| Display | 5-inch adjustable capacitive touchscreen |
| Screen resolution | 1280 × 720 |
| Power input | 24 V DC |
| Rated power | 160 W |
| Spindle speed | 12,500 rpm |
| Motor torque | 0.15 N·m |
| Machine dimensions | 390 × 220 × 270 mm |
| Net weight | 13 kg |
| Connectivity | Wi-Fi and Bluetooth |
| Supplied clamp | M5 |
| Battery | Included |
What’s Included
- Dolphin II XP-005L machine with battery
- M5 clamp
- 1.5 mm cutter and 2.5 mm cutter
- 1.0 mm probe
- Power adapter and power cord
- Cleaning brush
Why Choose Keysrus?
Keysrus has served the industry since 2007, supplying automotive keys, tools and accessories to locksmiths, automotive professionals and wholesale customers. Shop detailed product information with shipping to Canada and the United States.
Common Questions
Can I operate it without using my phone?
Yes. The onboard touchscreen provides direct machine control. Bluetooth app control is also available; Wi-Fi is used for online services and updates.
Does this version include the battery?
Yes. This listing is for the XP-005L with battery and power adapter.
Can it make a replacement when the original key is missing?
For supported profiles, it can cut a replacement from available bitting or supported key-code data. Vehicle immobilizer programming is a separate step performed with a compatible key-programming tool.
What helps maintain cutting accuracy?
Follow the on-screen calibration procedure, keep the clamp and work area clean, and use the correct cutter and probe for the selected key.
