KeyMaster G3 USA STD — OBDStar

2 Year Free Update

OBDStar KeyMaster G3 USA STD — OBDII IMMO Key Programmer for North America (MQB, Toyota Proximity, Nissan/ Ford All-Keys-Lost, Hyundai/Kia PIN Read)

Key Programmer · IMMO · ECU-Advanced (IMMO chips only) · OBDII Diagnostics

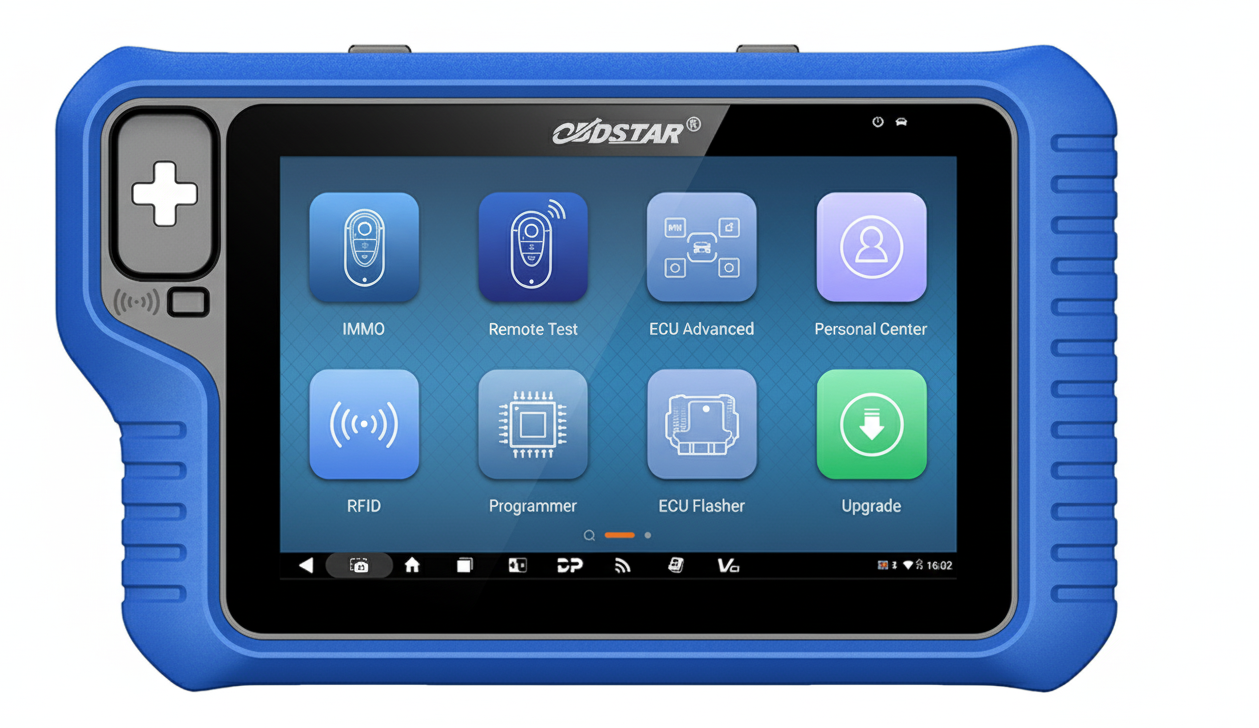

A rugged, Android-based programming tablet built for locksmiths and automotive techs who work U.S. vehicles. The KeyMaster G3 USA STD focuses on immobilizer (IMMO) functions, OBDII diagnostics, EEPROM/MCU (IMMO-related) programming, and smart-key operations — delivering the core tools you need without the extra cost/complexity of full ECU flashing or cluster recalibration.

Powerful, portable, and purpose-built for immobilizer jobs on North American cars. Program smart keys (including MQB and Toyota proximity systems), perform all-keys-lost procedures on many popular models, read PINs for key systems, run OBDII diagnostics, and handle IMMO-related EEPROM/MCU tasks — all from an 8″ Android touchscreen.

Key IMMO highlights

• Volkswagen MQB key programming with free synchronization code calculation.

• Latest Toyota proximity key programming support.

• All-keys-lost workflows for Nissan (Rogue, Sentra, etc.) and many Ford models (vehicles from 2021 onward).

• PIN code read support for Hyundai/Kia ID6A systems.

• BMW motorcycle OBD key programming for ID8A, ID4D, and ID46 transponders.

• Support for transponder operations and smart-key learning flows common to North American markets.

Technical specifications

• OS: Android (customized for diagnostics)

• CPU: High-performance quad-core processor

• Memory: 4 GB RAM

• Storage: 64 GB internal

• Display: 8″ high-brightness touchscreen

• Connectivity: Dual-band Wi-Fi (2.4 / 5 GHz), Bluetooth 5.0

• Interfaces: HDMI, USB, OBD16 port

• Protocols: CAN-FD, DOIP, Fault-Tolerant CAN, OBD16 pinout switch support

• Special: RFID support, Remote Test capability

Package contents

• KeyMaster G3 USA STD main unit
• OBDII diagnostic cable
• Power supply & USB cable
• Quick start guide
• Carrying case
• 2 year free update

Short FAQ

Q — Is full ECU flashing or cluster calibration included?
A — No. The USA STD focuses on IMMO-related EEPROM/MCU programming and immobilizer/key functions, not full ECU flashing or cluster recalibration.

Q — Can it program remote/headless smart keys?
A — Yes — the G3 supports smart key operations and proximity key programming for many current models; specific model support varies by make/year.

Q — Is software subscription or updates required?
A — The device runs a customized Android diagnostic platform; check your vendor for update/subscription policy and supported makes/years.
