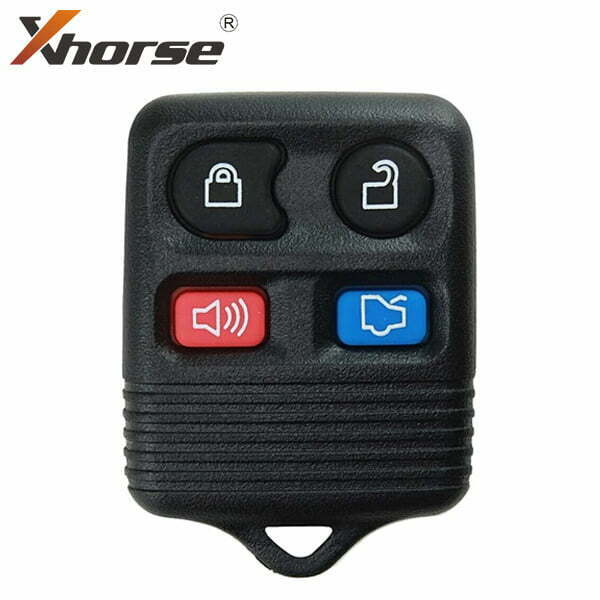

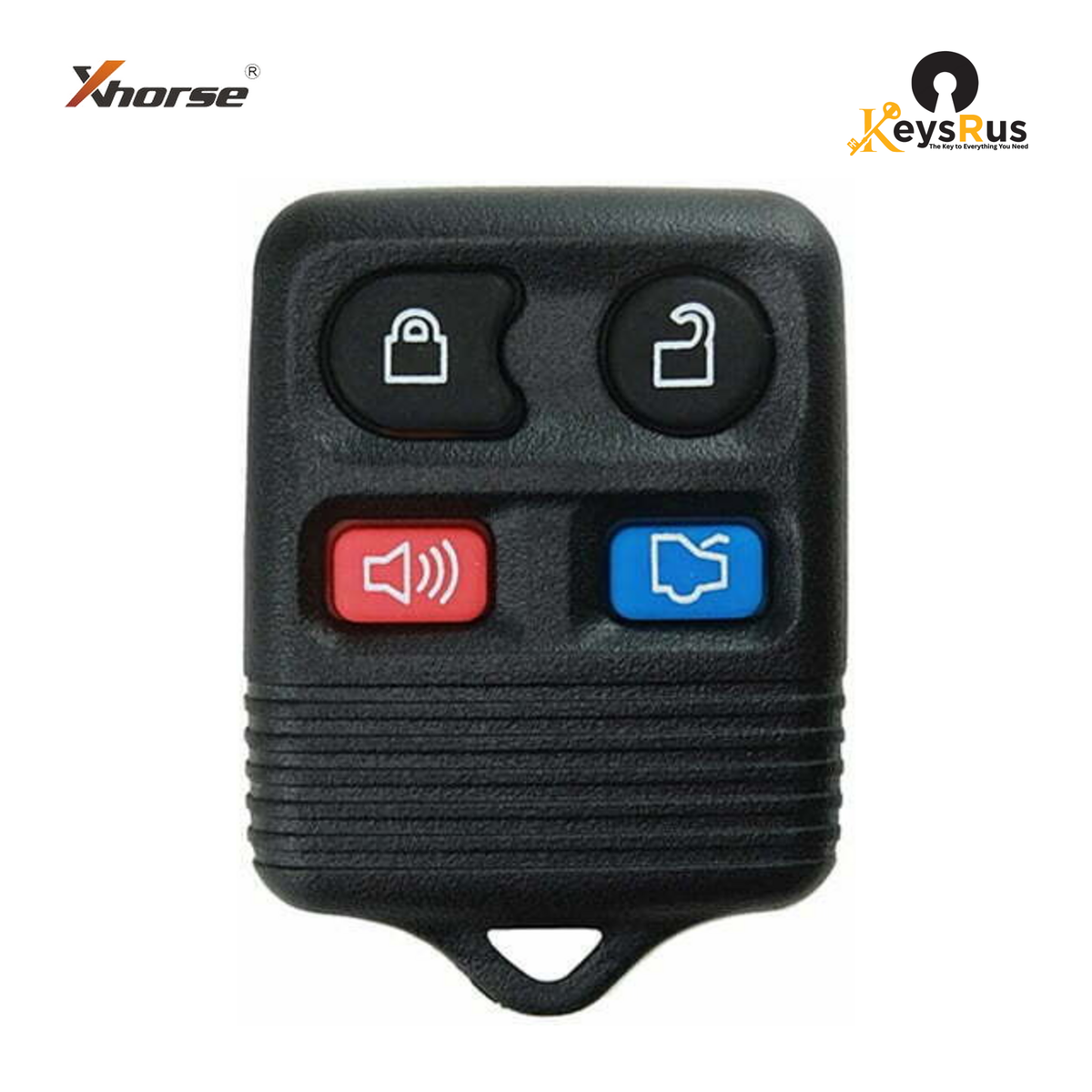

Xhorse XKFO02EN – Ford Style 4-Button Universal Wired Remote for VVDI Key Tool

The Xhorse XKFO02EN (also labeled as XKF002EN) is a Ford-style 4-button universal remote designed for use with the VVDI Key Tool, Key Tool Max, and Mini Key Tool. This wired remote provides a simple and reliable way to generate replacement keys with OEM-like functionality.

With buttons for Lock, Unlock, Trunk, and Panic, this remote delivers a full-featured experience once generated and paired with the vehicle.

Note: Requires CR2032 battery (not included). Chip and key blade sold separately.

Key Features:

• Model: XKFO02EN / XKF002EN
• Style: Ford 4-Button Design
• Button Functions: Lock, Unlock, Trunk Release, Panic
• Type: Wired Remote (requires data cable for programming)
• Battery Required: CR2032 (not included)
• Compatibility: VVDI Key Tool, Key Tool Max, Mini Key Tool, VVDI2

Programming Instructions:

1. Open the remote and remove the CR2032 battery
2. Connect the data cable to the white connector on the remote's PCB
3. Plug the other end into your VVDI Key Tool
4. On the VVDI device, navigate to "Remote Product" and select the remote you want to generate
5. Disconnect the cable, reinsert the battery, and reassemble the remote
6. Install the appropriate chip and blade for your specific vehicle
7. Program to the vehicle using the same method as an OEM remote

Ideal For:

• Professional locksmiths
• Replacement Ford-style keys
• Expanding your universal remote stock
• Fast, OEM-style remote generation
